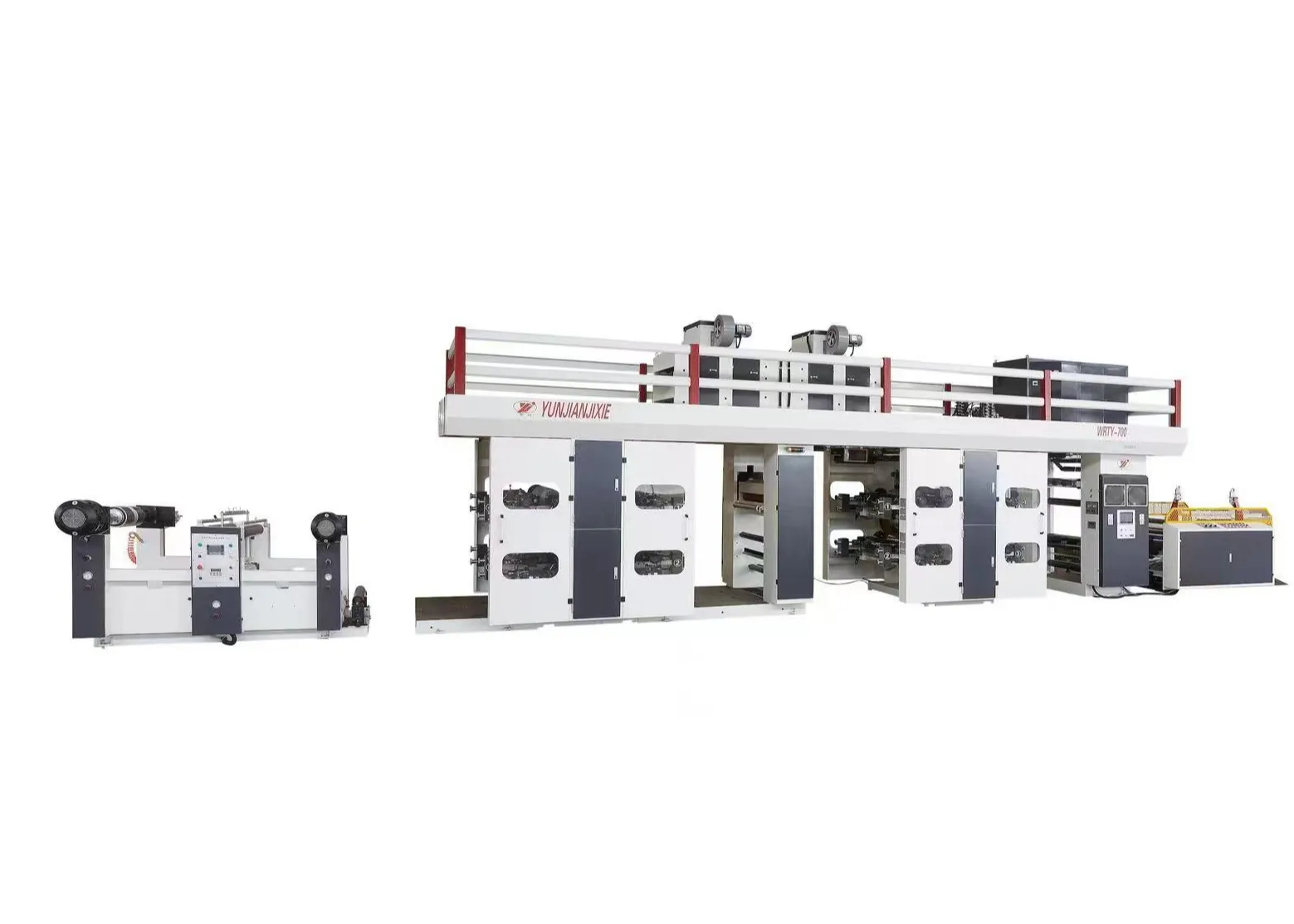

WRTY-7004+4 Plastic Woven Flexible Printing Machine
Maximum mechanical speed: 250m/min
Printing speed: 50-200m/min
Maximum width of rewinding & unwinding: 850mm
Maximum diameter of rewinding & unwinding: 1500mm
Maximum printing width: 700mm
Printing range: 400-1200mm
Repetition length: 5mm (length increases or decreases by 5mm for each increase or decrease of 1 tooth)
Proofing method & range: horizontal 15mm vertical 10mm, online (non-stop) electric quantitative rapid registration
Displacement angle: 045
Machine power: 125KW
Machine weight: 20T
Machine dimensions: 16.834.3m
Printing method: full width 4 colors on the front and 4 colors on the back
This unit is manufactured with advanced technology and processes from home and abroad. It has the characteristics of precise structure, simple operation, convenient maintenance, and high degree of automation. The maximum production speed can reach 200m/min, and the registration accuracy is 0.1mm. The registration accuracy will not change during the speed increase and decrease process
