Product Details

Model No.

SCXZ

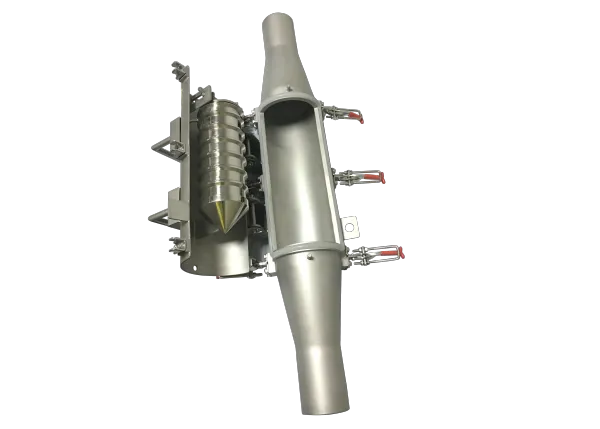

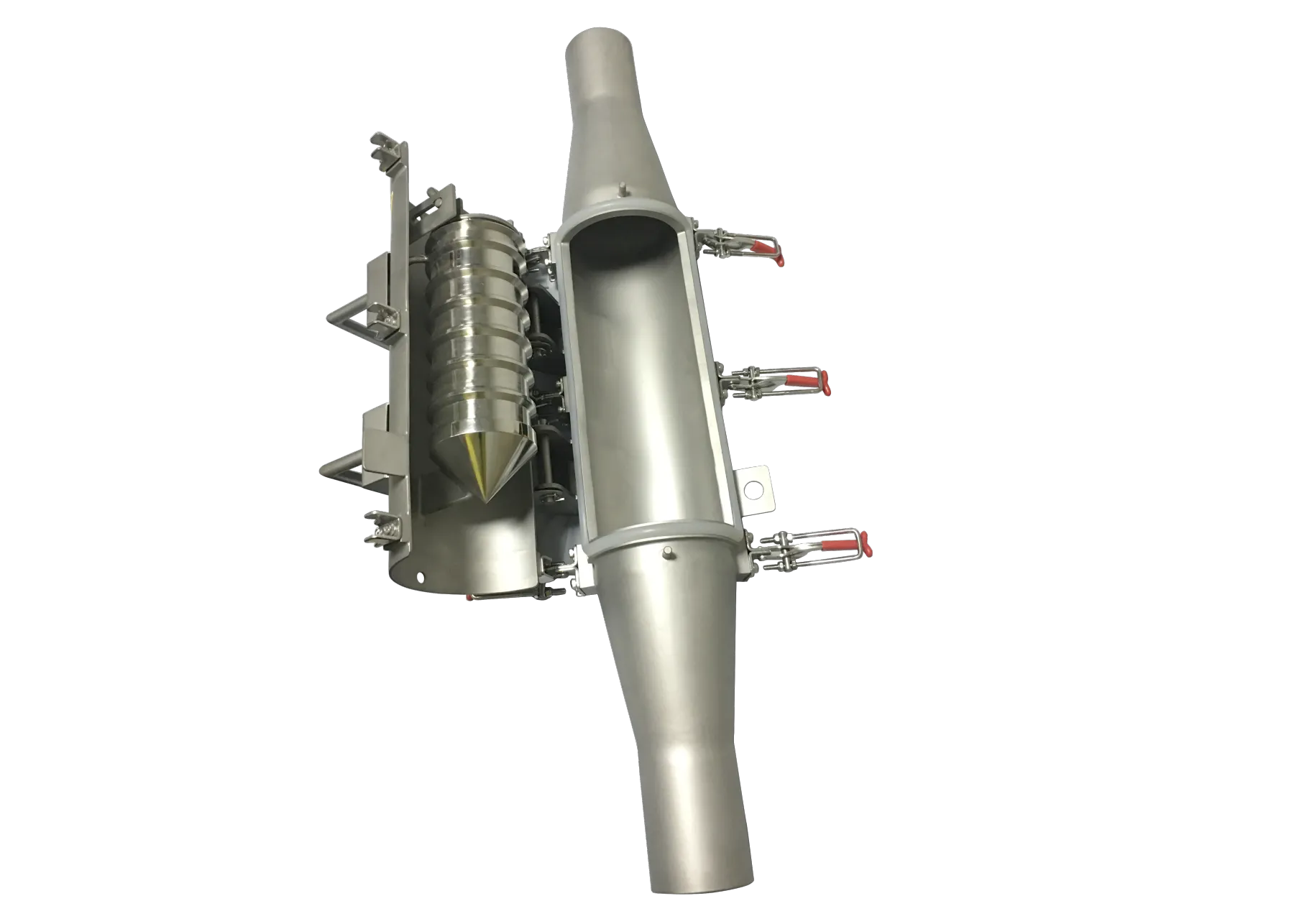

In-line magnetic separator used to remove ferrous contamination from powdery material, which can be installed in pneumatic line and bulk load outs of truck and rail truck and mounted vertically or horizontally. The nose cone directs the flow of materials around the magnet, and tapered steps on the surface of magnet to prevent ferrous contamination from wiping off.

Benefits:
Strong rare earth magnets
Easy-clean type
Full weld construction
Food grade
Antipressure ability
Cart mounted models available for truck and rail car
Hinge construction available
O-ring silicon seal gasket eliminates leaks

Technical data:
Magnetic Performance: 10000Gs-12000Gs
Materials of housing and other parts: 304 stainless steel/316 stainless steel
Surface finish: sand blasting
